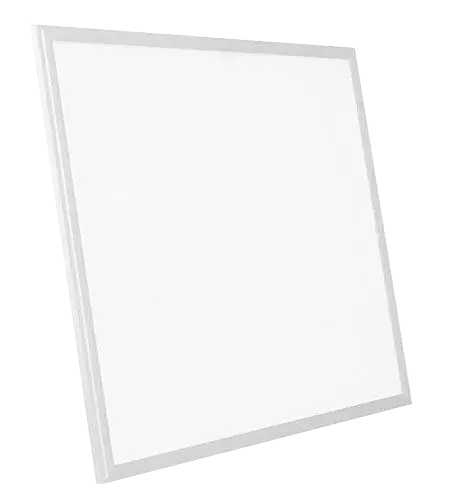

Back-Lit LED Panel Light

Back-Lit Panel 8 Overview:

Introducing our advanced Back-Lit Panel 8 series, meticulously designed for optimal performance. These sleek and modern panels come in three different sizes to cater to diverse installation requirements.

Sizes and Design:

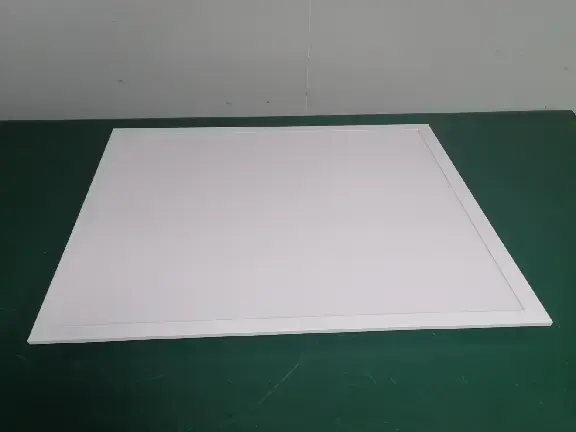

1. 2x2 Panel: A symmetrical square shape, versatile for a variety of room sizes.
2. 2x4 Panel: A more expansive rectangular design, suitable for larger spaces or conference rooms.

Product Details:

• Model:

  • 2x2: GPBP-E2-A22-40-811-L06-B10H
• • 2x4: GPBP-E2-A24-50-811-L12-B10H

• Voltage: All panels operate at a voltage range of 120-347V.

• Wattage: Depending on the model and user preference, our panels offer a wattage range of 20-50W, allowing for both energy conservation and maximum brightness.

• Lumen: Our panels guarantee a lumen count of 4400 for the 1x4 and 2x2 sizes, and 5500 for the 2x4 size, ensuring bright and consistent lighting.

• Efficacy: With an efficacy rate of 110, these panels are highly efficient.

• Color Rendering Index (CRI): A CRI of 80, ensuring that the colors within the illuminated space are rendered naturally and vibrantly.

• Correlated Color Temperature (CCT): Our range includes panels with CCTs from 3000 to 5000, allowing users to choose their desired ambiance, from warm to cool.

• Power Factor (PF): The panels have a power factor greater than 0.9, indicating efficient energy usage.

• Beam Angle (BA): A wide beam angle of 110° for broad and even light dispersion.

• Dimming: All panels come with 0-10V dimming capabilities.

• Lifetime: Built to last with a life expectancy of 50,000 hours.

Whether you're revamping an office space, upgrading a commercial establishment, or simply aiming for energy efficiency, the Back-Lit Panel 8 series promises to deliver in both functionality and aesthetics.
